Current-driven fit

Fit a negative-electrode exchange-current density from constant-current discharge data with CurrentDriven and DataFit.

from ionworks import Ionworks
import ionworks_schema as iws
import matplotlib.pyplot as plt
import pandas as pd
import pybamm

# Synthetic example discharge data (Time [s], Current [A], Voltage [V]) per C-rate.
# Swap in your own export, or read a measurement with `client.cell_measurement`.
data = {"0.5 C": pd.read_csv(iws.example_data("current_driven_discharge"))}

# The Arrhenius form below needs an activation energy, which Chen2020
# does not define; zero gives j0 no temperature dependence.
baseline = pybamm.ParameterValues("Chen2020")
baseline["Negative electrode reaction activation energy [J.mol-1]"] = 0.0
known = iws.direct_entries.DirectEntry(parameters=baseline)

# j0 = j0_ref (c_e/c_e0)^0.5 (c_s/c_smax)^0.5 (1 - c_s/c_smax)^0.5
#      exp(E_r/R (1/T_ref - 1/T)), replacing Chen2020's own j0 function.
j0_function = iws.direct_entries.arrhenius_butler_volmer_exchange_current_density(
    electrode="negative"
)

# We fit j0_ref.
parameters = {
    "Negative electrode reference exchange-current density [A.m-2]": iws.Parameter(
        "Negative electrode reference exchange-current density [A.m-2]",
        initial_value=1.0,
        bounds=(0.1, 10.0),
    ),
}

fit = iws.DataFit(
    objectives={
        rate: iws.objectives.CurrentDriven(
            data=df,
            options=iws.objectives.CurrentDrivenOptions(
                model=pybamm.lithium_ion.SPMe()
            ),
        )
        for rate, df in data.items()
    },
    parameters=parameters,
    cost=iws.costs.RMSE(),
    # Capped to keep the example quick; a harder fit needs more.
    optimizer=iws.optimizers.ScipyMinimize(method="Nelder-Mead", max_iterations=20),
)

client = Ionworks()
submission = client.pipeline.create(
    iws.Pipeline({"known": known, "j0_function": j0_function, "fit": fit})
)
client.pipeline.wait_for_completion(submission.id)
result = client.pipeline.result(submission.id)
fit_result = result.element("fit")

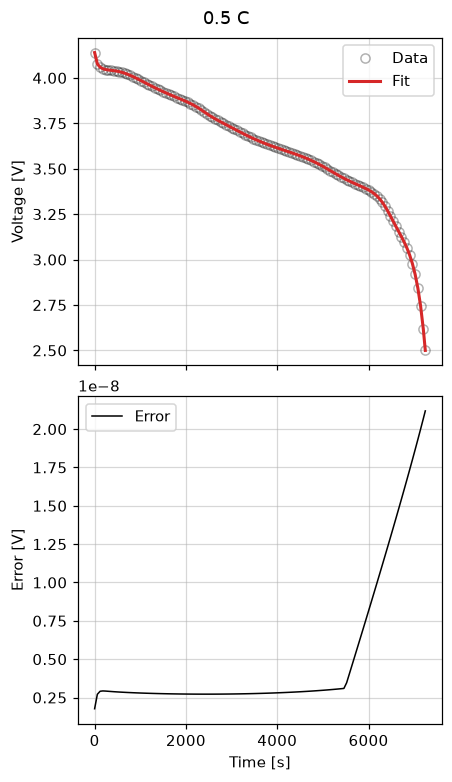

figs = fit_result.plot_fit_results()
plt.show()
